Answer to Question #89094 in Computer Networks for pretty

Question

You are given the position as Network Administrator at Richfield Graduate Institute of Technology and using Windows server 2012.Explain how you would assign a static IP address to a computer.

Answer 1

Assign a static IP address to a computer in Windows server 2012.

So, we need to register the static IP address in settings of network connection.

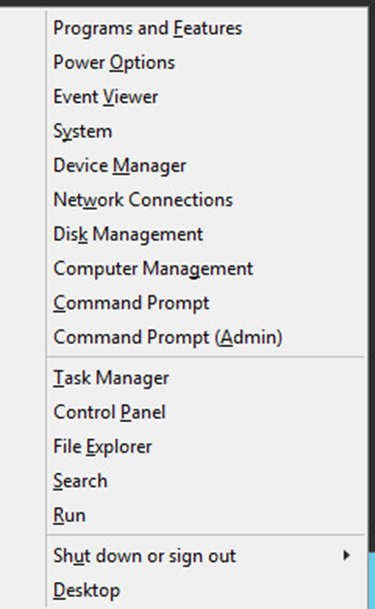

After reset of the server we log into the system under the account with the rights of the administrator(1.png).

Now we right-click on network connection of "Ethernet" and we select the “Properties” item(2.png).

We choose "Internet Protocol Version 4(TCP/IPv4)" and we press the Properties button(3.png).

After this select the “Use the following IP address” item and we specify the free IP address, a mask of a subnet and a gateway. Pay attention, you have to understand in advance how your network is arranged and to know what IP addresses are free.

In the field of "Preferred DNS server" we specify the IP address of your DNS server. The DNS server which is on the domain controller is specified in our case. We press the OK button(4.png).

In the Ethernet Properties window we press the Close button(5.png).
