A transmission line of Zo = 125 ohm is connected to a lemda/4 section of transmission line (Zo = 250 ohm) which is terminated in 500 ohm load. Show that the transmission line is matched to lemda/4 section.
1
Expert's answer
2019-06-06T10:10:09-0400

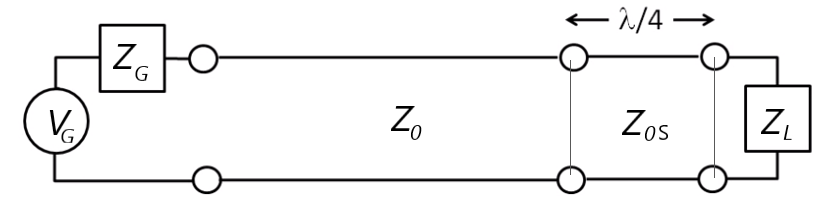

The transmission line is presented below:
The criteria for matching is
"Z_0=\\frac{Z_{0S}^2}{Z_L}."
Check whether our line fits this criteria:
"125=\\frac{250^2}{500}."
The expression is true, that is why the line matches the "\\lambda\/4" ("\\lambda" reads "lambda") section.
