Answer to Question #229406 in Mechanical Engineering for ALLU

Mechanical Engineering

Question #229406

Derive an expression for maximum discharge rate of gases through the chimney for a given height of the chimney.

Expert's answer

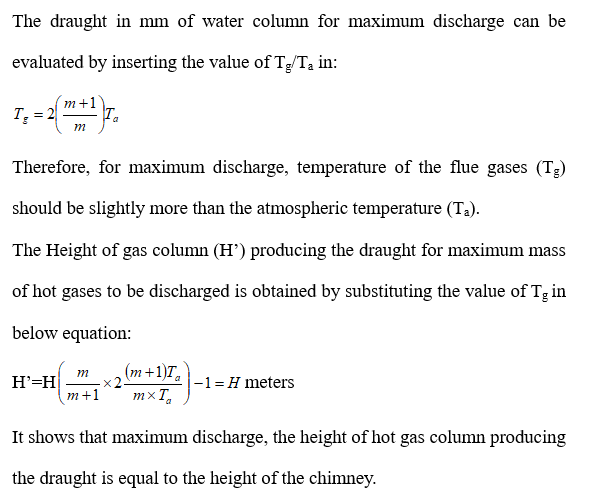

The answer to your question is provided in the image:
