Answer to Question #188659 in Mechanical Engineering for Aditya

Question #188659

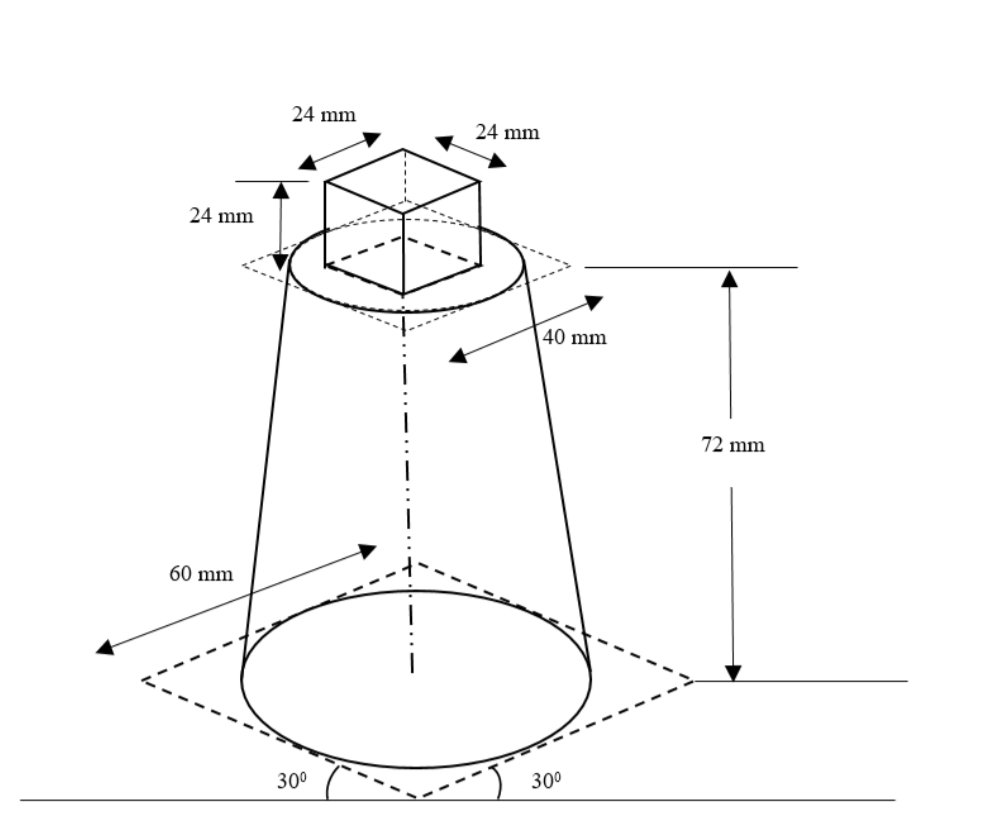

A cube of edge 24mm is resting on the top of a frustum of cone of base diameter 60mm and top

diameter of 40mm with axis height of 72mm. Draw the isometric view of these solids


1
Expert's answer
2021-05-05T07:46:16-0400

The answer to your question is provided in the image:
