A generator is rated 100 MW, 13.8 kV and 90% power factor. The effective resistance is 1.5 times the ohmic resistance. The ohmic resistance is obtained by connecting two terminals to a DC source. The current and voltage are 88.6 A and 4 V, respectively. What is the effective resistance per phase?

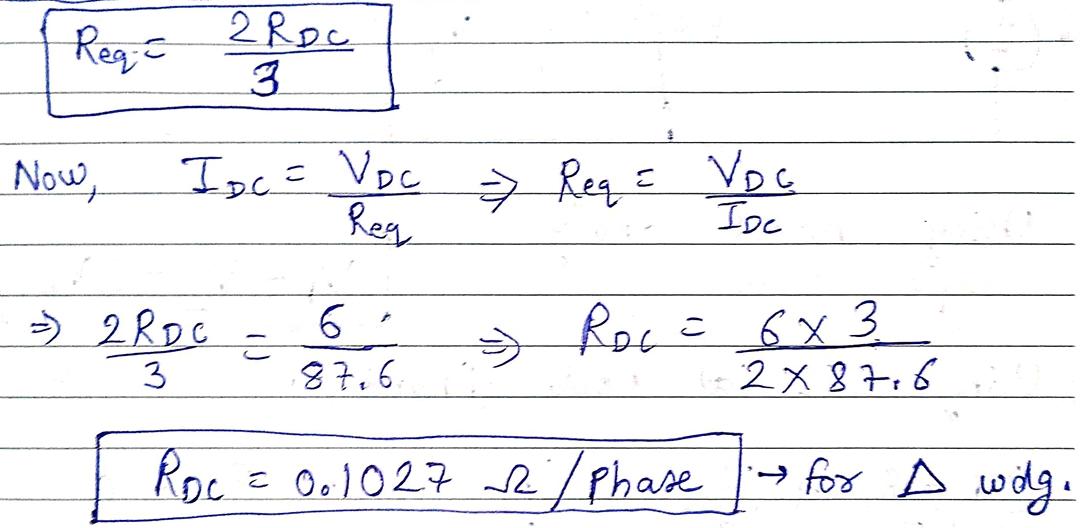

The answer to your question is provided in the image:
