Answer to Question #267733 in Electrical Engineering for ppk

Question #267733

You are provided with the BC547 transistor and E24 series of resistors, along with a voltage supply of 10 V. If the transistor can be assumed to have a 𝛽 = 200, design a common-emitter amplifier to the following specifications:

a. The amplifier should be biased in the middle of the active region.

b. A sinusoidal output of amplitude 1 V should be obtained when a sinusoidal input of amplitude 10 mV and frequency 10 kHz, is applied from a source of resistance 5 kΩ.



1
Expert's answer
2021-11-18T10:58:02-0500

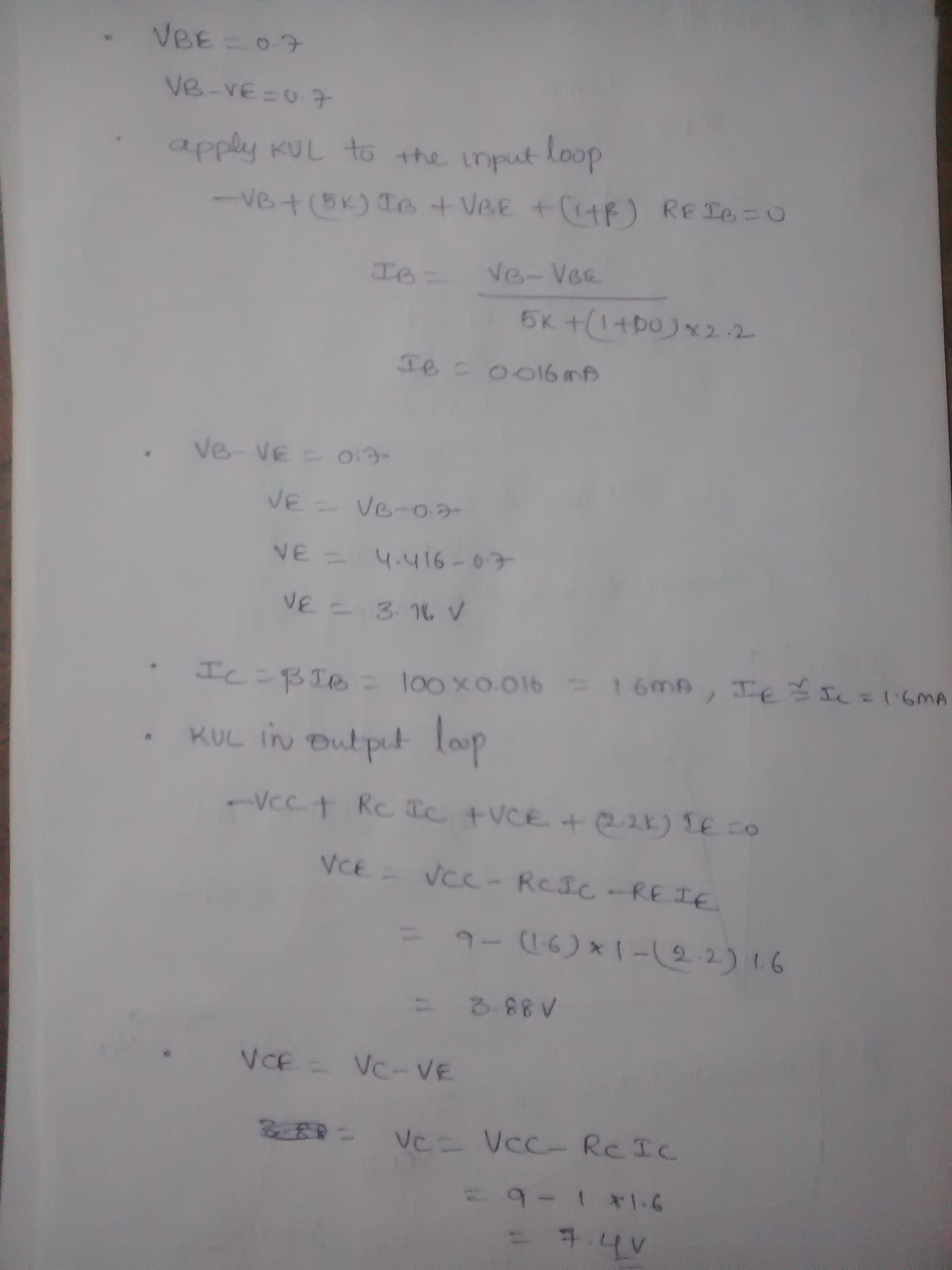

The answer to your question is provided in the image:
