Question #244182

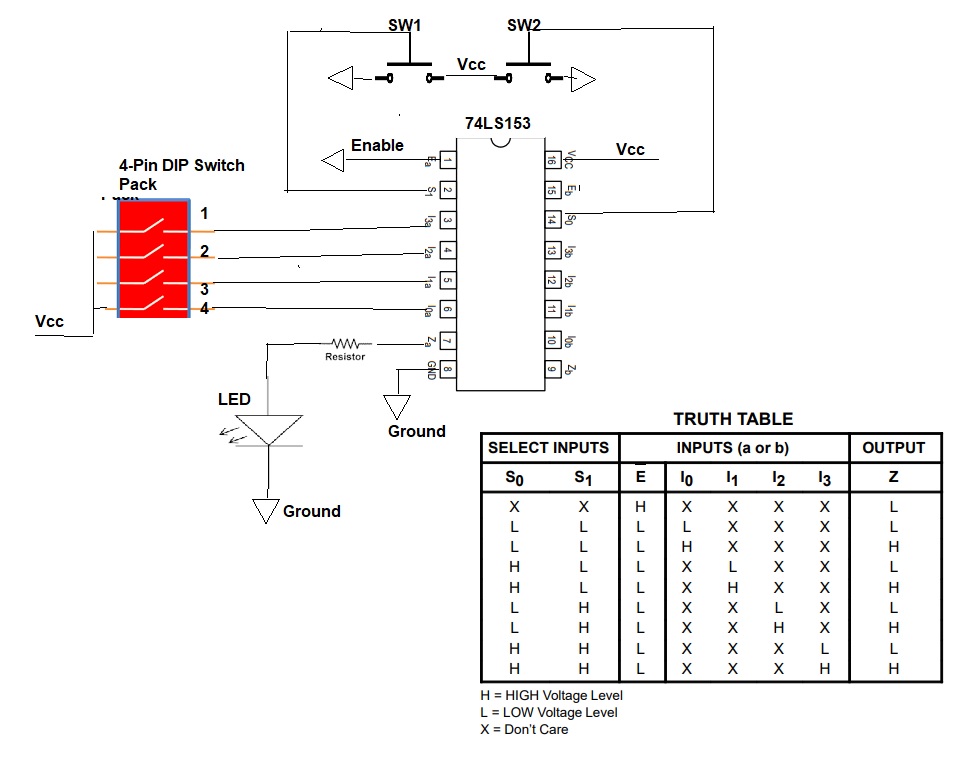

Using the 74LS153 IC, DIP switches and an LED, draw and construct the 4-to-1 line MUX.

Expert's answer

The answer to your question is provided in the image:
