Answer to Question #232173 in Electrical Engineering for Alock kumar

Question #232173

Simplify the following boolean function, using four-variable maps:


F(A, B, C, D) =  Σ(0, 2, 4, 5, 6, 7, 8, 10,

13, 15)

1
Expert's answer
2021-09-04T01:00:52-0400

Given that the Boolean expression is:

F(A, B, C, D) = Σ(0, 2, 4, 5, 6, 7, 8, 10,

13, 15

The truth table will be:





The K-MAP will be as follows



Therefore, the expression becomes:

F = B|CD+|B|D+|AB

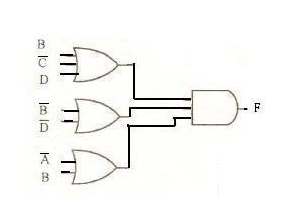

The logic diagram is:
