Answer to Question #201341 in Civil and Environmental Engineering for ABHINAV SINGH

Question #201341

A free-standing rectangular beam with cross-sectional width b = 250 mm and a span of 6.5 m is loaded with dead load (including dead weight) = 29 kN / m and payload = 35 kN / m. The payload has no long-term share.

a) Determine the dimensioning field moment of the beam in the ultimate limit state.

b) Select normal reinforced cross section. Determine the cross-sectional height and reinforcement quantities when it is stated that the beam is to be pressure-reinforced for 30% of the design moment. Show geometry and reinforcement on a sketch of the cross section.

c) Sketch the strain state of the cross section and check that the pressure reinforcement flows.

d) A deflection requirement in the service limit state of L / 400 has been stated. Calculate the maximum deflection in the life of the beam and compare with the requirement, disregarding the effect of shrinkage on deflection.

Expert's answer

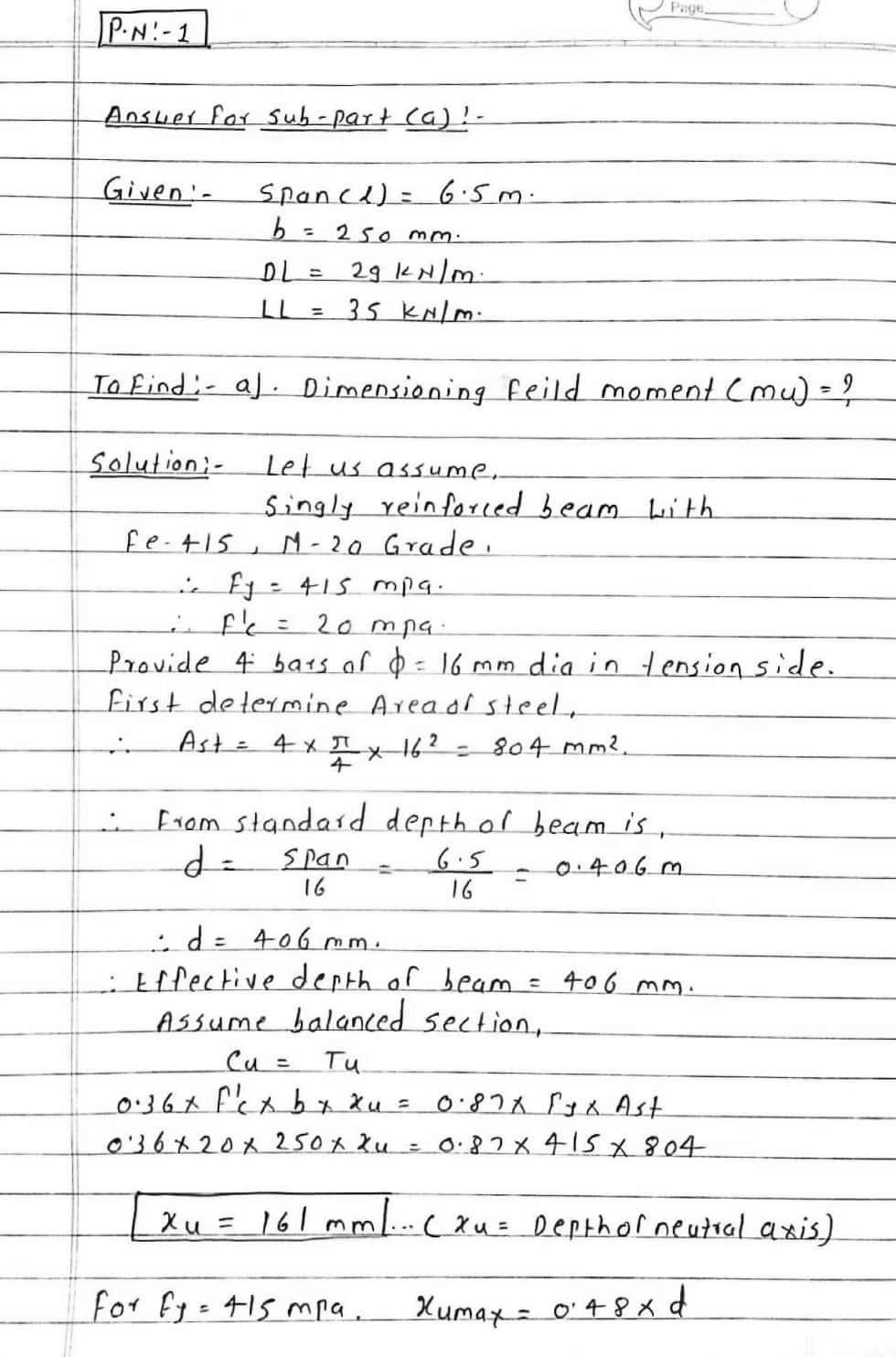

The answer to your question is provided in the image:
