A cube of edge 24mm is resting on the top of a frustum of cone of base diameter 60mm and top

diameter of 40mm with axis height of 72mm. Draw the isometric view of these solids?

Expert's answer

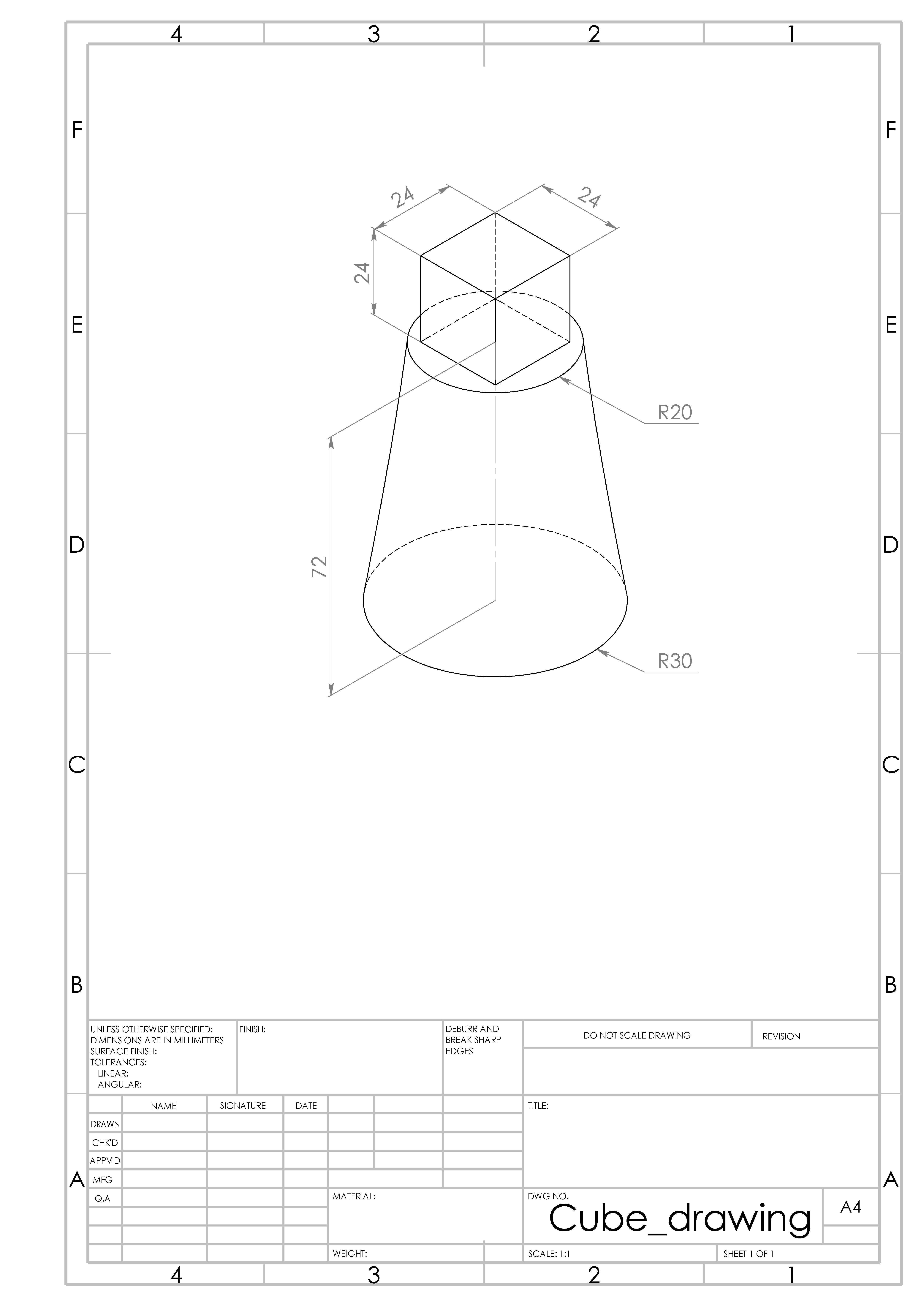

The answer to your question is provided in the image:
