Question #265229

Design a transistor fixed bias circuit with VCC = 12V, VBE = 0.7V, β=100 and RC =1KΩ to operate in middle of the Load line (for IC = 6mA), cut off region (for IC = 0.5


mA) and saturation region (for IC = 11.5 mA). Determine the corresponding values of


RB and VCEQ for the three different cases.

1
Expert's answer
2021-11-13T02:11:45-0500

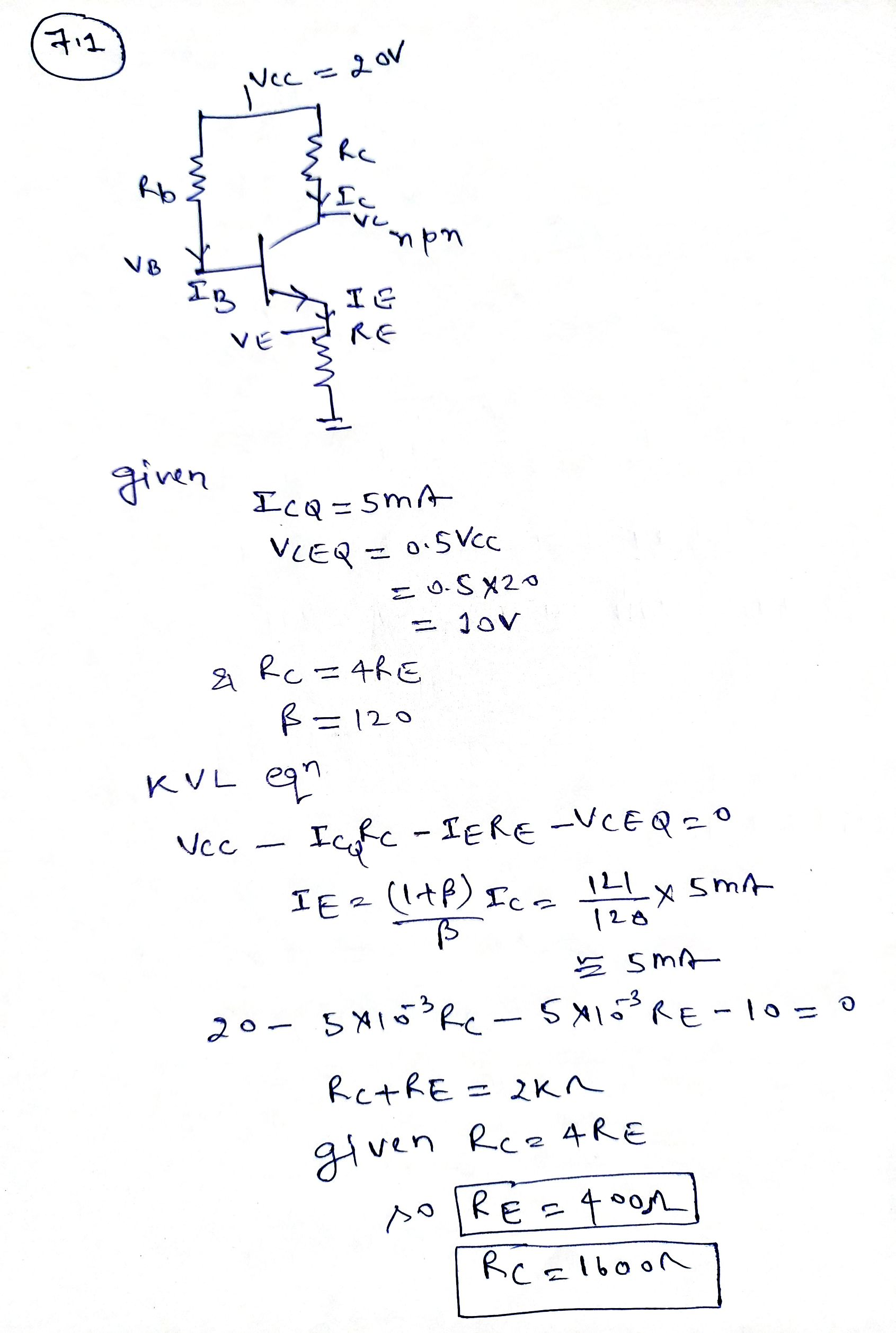

The answer to your question is provided in the image:
