Answer to Question #245245 in Electrical Engineering for anshu

Question #245245

Show the hardware that implements the following statement. Include the logic gates for the control function and a block diagram for the binary counter with a count enable input. xyT0 + T1 + y’ T2: AR  AR + 1


1
Expert's answer
2021-10-04T02:27:21-0400

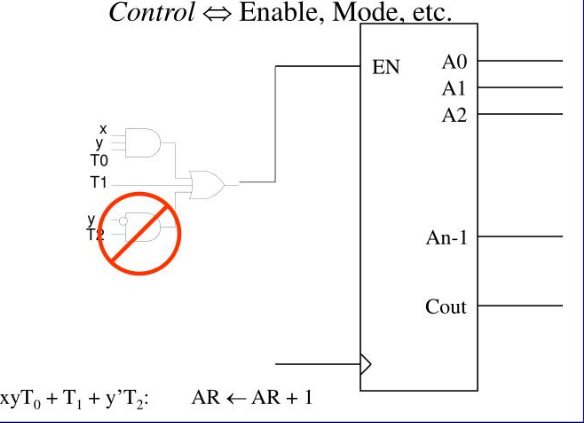

The block diagram will look as captured below:
